Submersible Slurry Pump Gallery
Browse our complete collection of Submersible Slurry Pump equipment images. Find detailed product photos, specifications, and technical information for all our Submersible Slurry Pump models.
Premium Submersible Slurry Pump Series

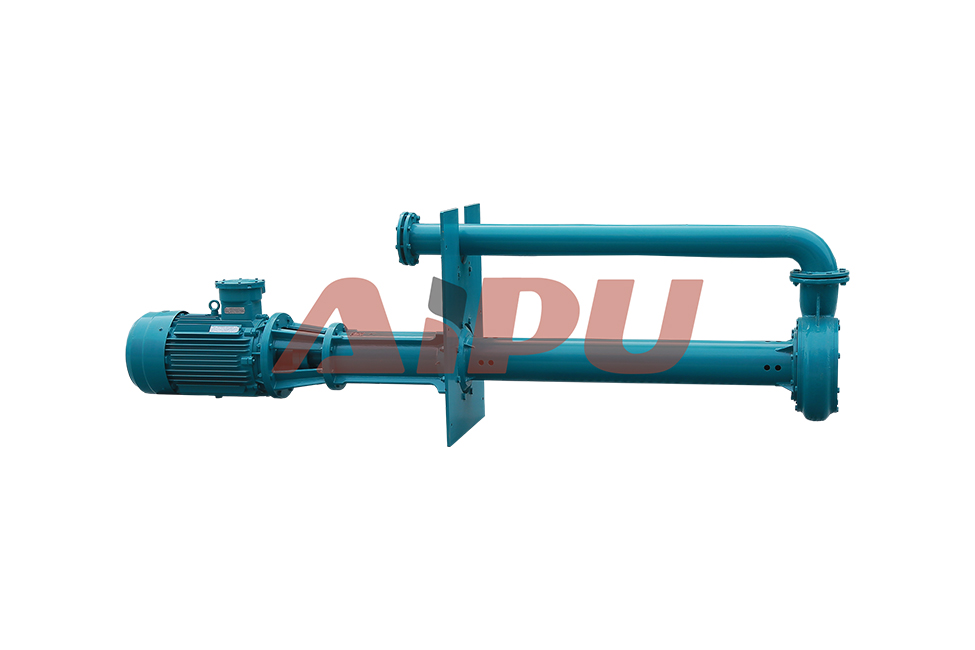

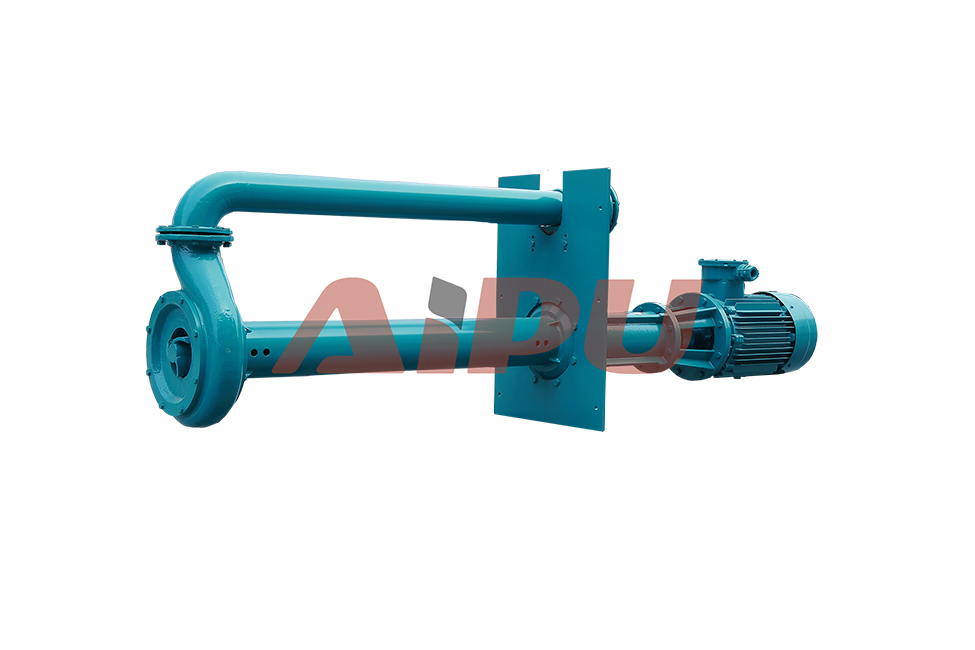

The AIPU APYZ Submersible Slurry Pump is engineered for heavy-duty transfer of high-concentration slurries and abrasive media in demanding drilling waste management applications. Featuring a unique cantilevered shaft design without submerged bearings or gland seals, it significantly reduces maintenance costs while handling solids content up to 80%. The pump's semi-open impeller and robust construction allow it to process media with large solid particles efficiently. Available in power ratings from 4kW to 45kW with flow capacities reaching 270m³/h, this versatile pump is certified for hazardous area operations with IECEX, ATEX, and UL certifications, making it suitable for various challenging environments including drilling waste handling, sludge transfer, and slurry processing systems.
Submersible Slurry Pump
The compact and portable design of AIPU submersible slurry pumps enables easy deployment in confined spaces and remote locations.
Submersible Slurry Pump
With dual-speed motor options (1450/1750 rpm), the APYZ pump provides operational flexibility for different viscosity and head requirements.
Submersible Slurry Pump
AIPU slurry pumps feature customized discharge configurations (DN50-DN150) to match various pipeline requirements in slurry processing systems.
Submersible Slurry Pump
The pump's gland seal-free design eliminates common leakage points, ensuring reliable performance in continuous operation.
Submersible Slurry Pump
Engineered for tough conditions, the APYZ pump's robust construction withstands abrasive and corrosive materials in drilling waste management.
Submersible Slurry Pump
AIPU's submersible slurry pumps come with international certifications including IECEX, ATEX, and UL for safe operation in hazardous environments.
Submersible Slurry Pump
The APYZ series offers multiple power options from 4kW to 45kW, delivering flows up to 270m³/h and heads up to 45 meters.
Submersible Slurry Pump
With its semi-open impeller design, the AIPU APYZ pump effectively transports media containing large solid particles while preventing clogging.
Submersible Slurry Pump
Featuring a cantilevered shaft design without submerged bearings, the AIPU Slurry Pump significantly reduces maintenance costs and downtime.
Submersible Slurry Pump
The AIPU APYZ Submersible Slurry Pump handles high-concentration solids up to 80% content, making it ideal for demanding sludge transfer applications.
Submersible Slurry Pump Technical Specifications
| Model | Flow Rate (m³/h) | Head (m) | Speed (rpm) | Power (kw) | Outlet |
|---|---|---|---|---|---|
| AP50YZ20-18 | 30 | 10 | 1450/1750 | 4 | DN50/2" |
| AP50YZ30-20 | 30 | 20 | 1450/1750 | 5.5 | DN50/2" |
| AP50YZ40-10 | 40 | 10 | 1450/1750 | 5.5 | DN50/2" |
| AP50YZ20-20 | 50 | 20 | 1450/1750 | 7.5 | DN50/2" |
| AP80YZ50-20 | 60 | 18 | 1450/1750 | 7.5 | DN50/2" |
| AP80YZ80-20 | 80 | 21 | 1450/1750 | 11 | DN80/3" |
| AP100YZ100-30A | 110 | 24 | 1450/1750 | 18.5 | DN100/4" |
| AP100YZ100-30 | 120 | 28 | 1450/1750 | 22 | DN100/4" |
| AP100YZ160-38B | 164 | 26 | 1450/1750 | 30 | DN100/4" |
| AP150YZ250-40B | 240 | 24 | 1450/1750 | 37 | DN150/6" |
| AP150YZ250-40A | 270 | 30 | 1450/1750 | 45 | DN150/6" |
Note: All pumps are available with IECEX, ATEX, UL, DGMS, CE, GOST certifications upon request.
