Shear Pump Gallery
Browse our complete collection of Shear Pump equipment images. Find detailed product photos, specifications, and technical information for all our Shear Pump models.
Premium Shear Pump Series

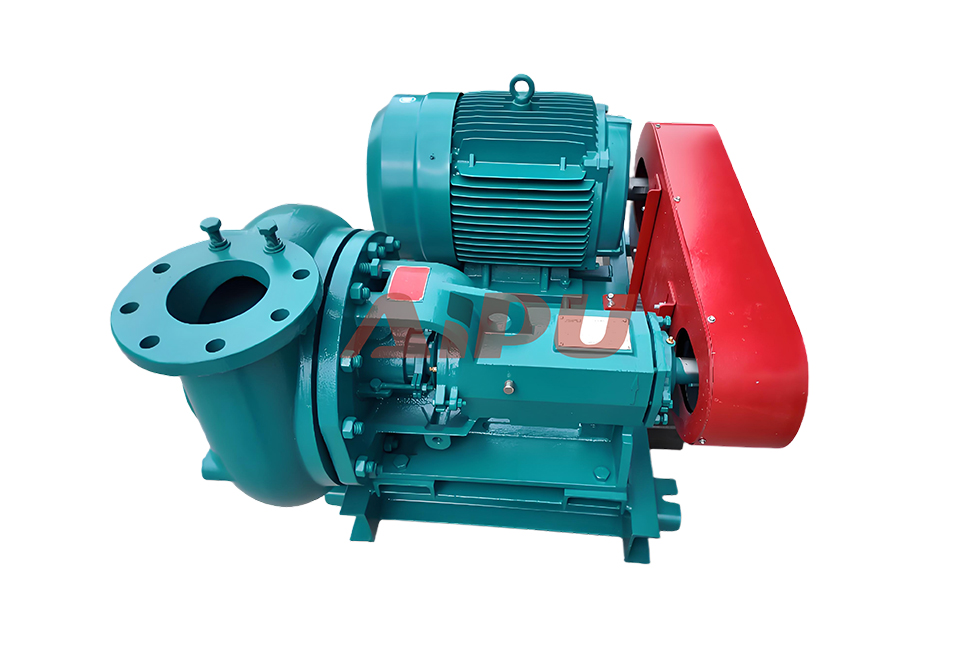

The AIPU Shearing Pump is specifically engineered to address the critical need for efficient polymer hydration in drilling fluid systems. Utilizing advanced mechanical sealing technology and an innovative impeller design, it delivers high shear forces that rapidly break down polymer chains and eliminate "fish eyes," ensuring complete hydration and optimal performance of drilling additives. With models offering flow rates from 100m³/h to 155m³/h and power options of 37kW or 55kW, this robust pump significantly reduces bentonite consumption by over 30% while enhancing gel strength and fluid stability. Its reliable operation and minimized maintenance requirements make it an essential component for modern drilling operations seeking to maximize fluid performance and reduce overall costs.
Shear Pump
By improving gel strength and reducing fluid loss, the AIPU Shear Pump enhances overall drilling fluid performance, matching the quality of international shear pump standards.
Shear Pump
AIPU Shear Pump's robust construction and minimal maintenance requirements make it an ideal choice for continuous operation in demanding drilling environments.
Shear Pump
The compact design of AIPU APJQB Shear Pump (1150×1100×1250mm) enables easy integration into existing mud systems while maintaining high processing efficiency.
Shear Pump
With power options from 37kW to 55kW, the AIPU Shear Pump offers versatile solutions for various drilling fluid systems and operational requirements.
Shear Pump
Featuring a unique impeller design, the AIPU APJQB Shear Pump generates high shear forces that effectively eliminate "fish eyes" in drilling fluid, preventing formation damage.
Shear Pump
AIPU's Shear Pump significantly accelerates polymer hydration, reducing bentonite consumption by over 30% and lowering overall drilling fluid costs.
Shear Pump
Engineered with advanced mechanical sealing technology, the AIPU Shear Pump provides exceptional reliability and extended service life in high-demand mud mixing applications.
Shear Pump
The AIPU APJQB Shear Pump delivers powerful hydraulic shearing with 100m³/h flow capacity and 24m head, ensuring complete polymer hydration for optimized drilling fluid performance.
Shearing Pump Technical Specifications
| Model | Flow Rate | Head | Power | Speed | Weight | Dimension |
|---|---|---|---|---|---|---|
| APJQB6535 | 100m³/h | 24m | 37kW | 1900rpm | 800kg | 1150×1100×1250mm |
| APJQB6545 | 155m³/h | 35m | 55kW | 2200rpm | 980kg | 1150×1100×1500mm |
