Desilter

What is Desilter?

Desilter unit mainly removes 15~44μm solid phase particles in oil and gas drilling and is the main equipment in the solid control system. Different structure as desilter without downstream shale shaker, desilter with Hunter Mini shaker, desilter with Hunter MG3 shaker.

Inquiry Now

Product Description

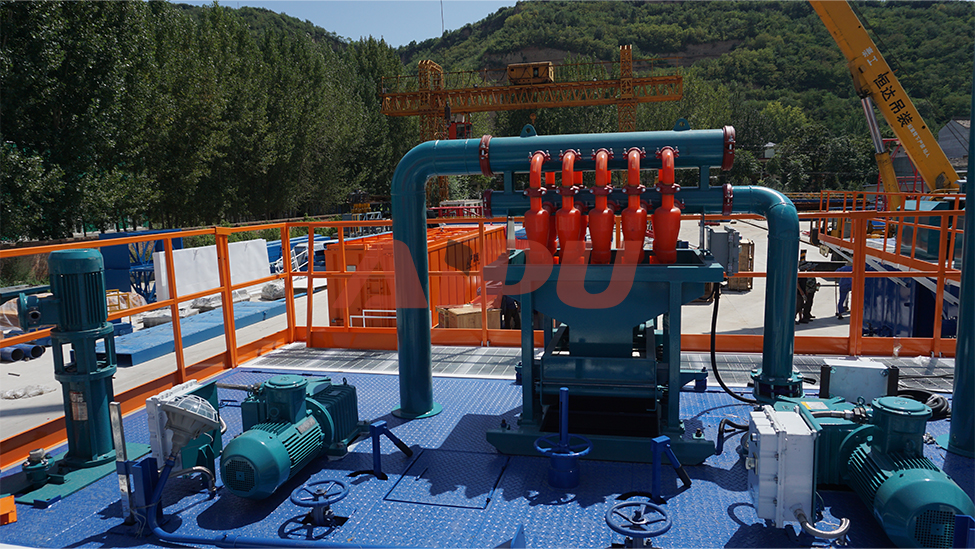

Mud desilter achieve effective the 3rd phase solids control. That mainly remove 15~44um solid particles. Desilter unit is the main equipment in the solids control system. It holds similar principle and operational way as desander. However, the separation point will be finer. Depends on clients requirement, it can be set to different numbers hydrocyclones.

Application Effects and Advantages

100% Polyurethane(PU) Material for desilter cones with longer using life.
Clamp type for easy maintenance
Optional bottom shaker screen
Easy operation with less maintenance,less spare parts.
Strict sand blasting and painting process
Utilized anti-abrasion & anti-corrosion paint

Specifications and Parameters

Desilter Parameters

Model	APCN60	APCN120	APCN240	APCN360
Max. Capacity	60m³/h	90-120m³/h	200-240m³/h	320-360m³/h
Cone Number	100x4(4''x4)	100x6(4''x6)	100x12(4''x12)	100x16(4''x16)
Working Pressure	0.25~0.45Mpa
Separation Point	15~44μm
Bottom Shaker	Single deck screen sized about 1㎡ driven by 0.4kw motor. Or customized

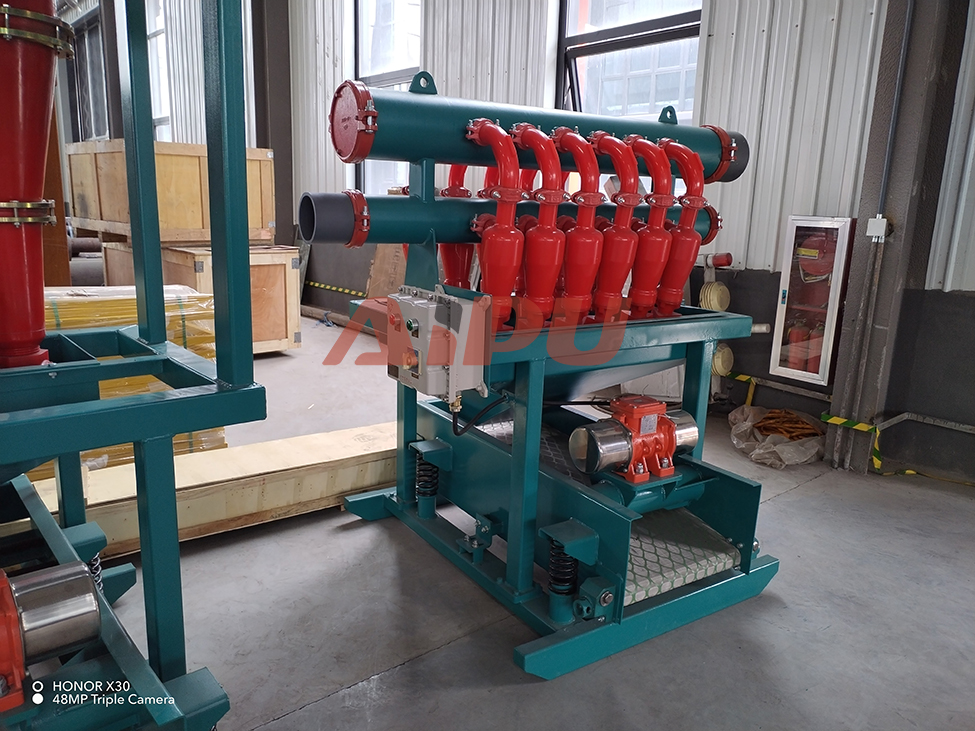

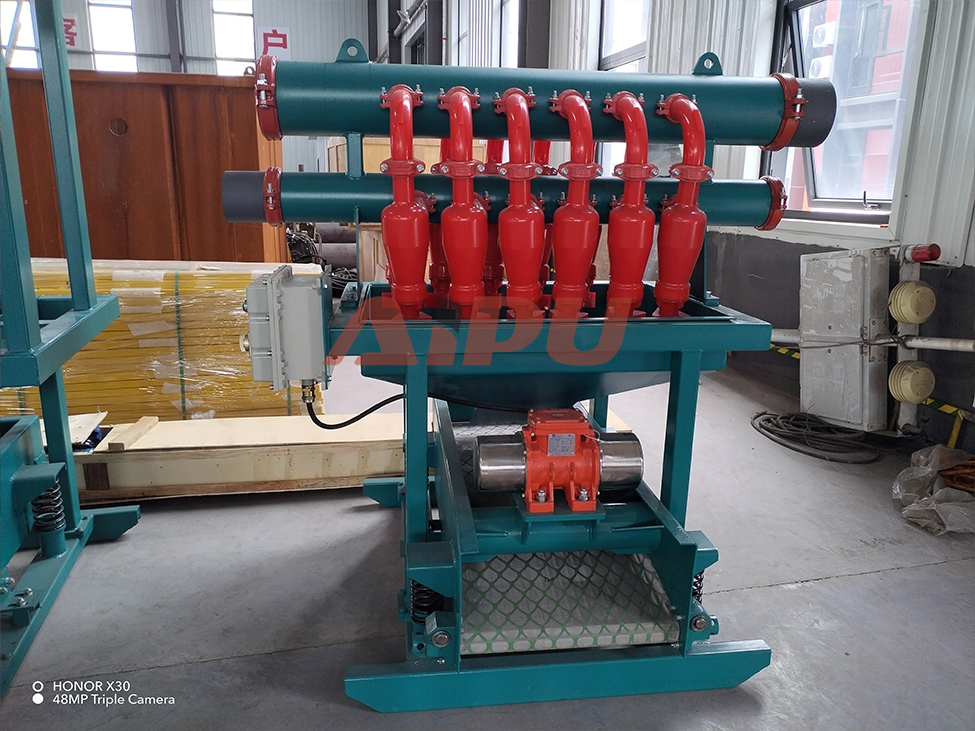

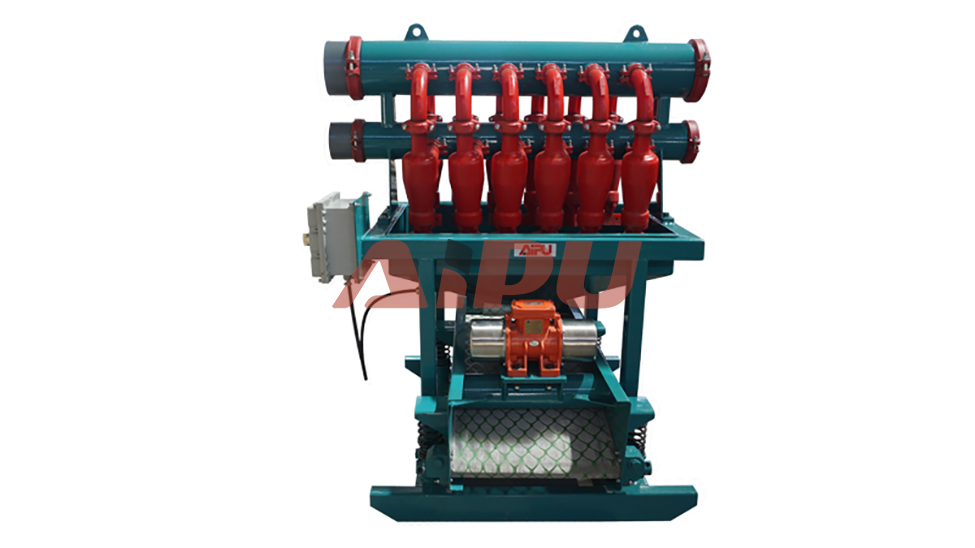

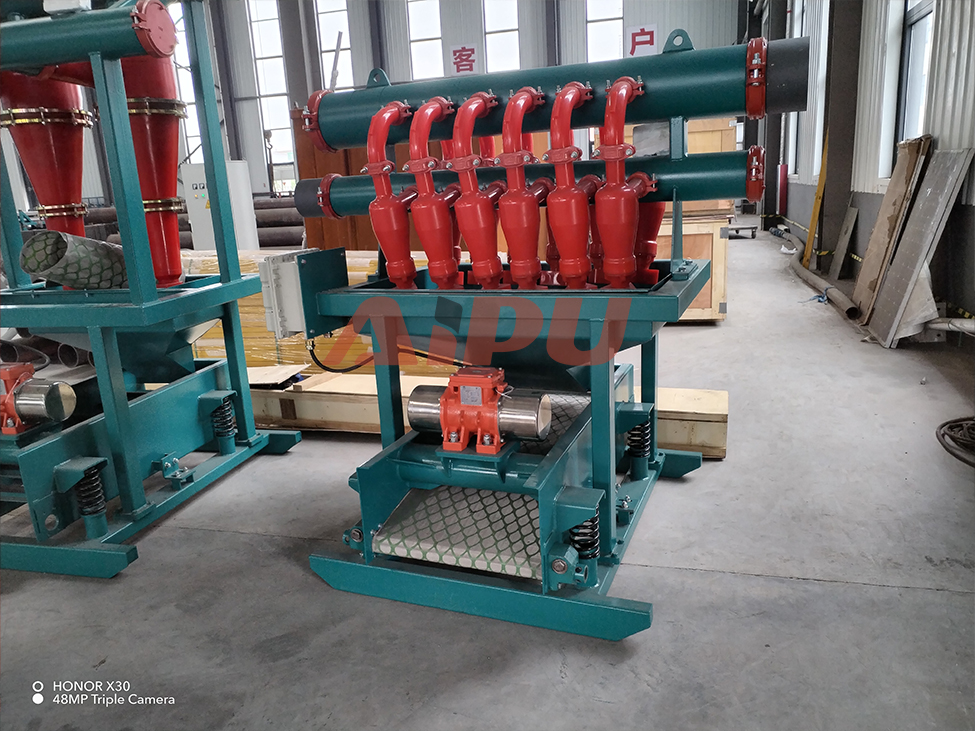

Desilter with Bottom Shaker Parameters

Model	Hunter N120	Hunter N240	Hunter N360	Hunter Mn120
Capacity	120m³/h	240m³/h	360m³/h	120m³/h
Power	2x1.5kw	2x1.5kw	2x1.72kw	2x0.75kw
Cones number	DN100X8 (4''X8)	DN100X12(4''X12)	DN100X16(4''X16)	DN100X8 (4''X8)
Screen Size	1165x585x40 (120mesh)x3	1165x585x40 (120mesh)x3	1165x585x40 (120mesh)x4	750x900x27 (100mesh)x2
Screen Area	2㎡	2㎡	2.7㎡	1.35㎡

More Options

Facing the international market, based on the actual needs of users, AIPU provides flexible configuration for customers. The following are the main optional parameters:

Electrical System - Customizable
Different size of downstream shale shaker for option
ATEX, IEC, DGMS, UL etc. certificates are optional
Surface color
