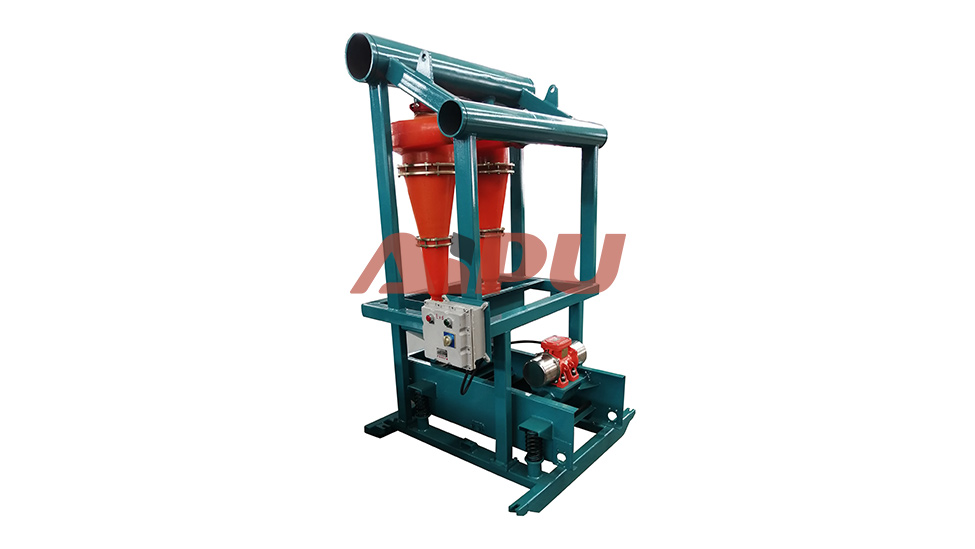

Desander
What is Desander?
Desander is solids control equipment with a set of desander cyclone to separate sand from drilling mud in drilling rigs. Desander is installed on top of the mud tank following the shale shaker and vacuum degasser but before desilter. The desander removes the abrasive solids around 45-74 micron.
Product Description
Desander is solids control equipment with a set of desander cyclone to separate sand from drilling mud in drilling rigs. Desander is installed on top of the mud tank following the shale shaker and vacuum degasser but before desilter. The desander removes the abrasive solids around 45-74 micron.
Desander Equipment In Solids Control System
A desander is the second phase cleaning for a whole solids control system, It sit on mud tank for separate drilling cuttings 47-76 micron and above by centrifugal force. The untreated mud will feed into desander cone at the horizontal inlet at pressure, the pressure and weight will help solids particles moving beside cone wall and drop down, fluids particles will be press on top and over flow away through pipeline. There can be a shaker to collect solids particles from desander nozzle or drop onto a hoper directly.
Application Effects and Advantages
- 100% Polyurethane(PU) Material for desander cones with longer using life.
- Clamp type for easy maintenance
- Flexible options for 1 or 2,or 3 for different capacities.
- High Different size of downstream shale shaker for option.
- Flexible fast connection are available for user friendly assembly
- Strict sand blasting and painting process
- Heavy duty anti-abrasion and anti-corrosion oil paint
Specifications and Parameters
Desander with Bottom Shaker Parameters
| Model | APCS60 | APCS120 | APCS240 | APCS320 |
|---|---|---|---|---|
| Max. Capacity | 60m³/h | 90-120m³/h | 200-240m³/h | 320-360m³/h |
| Cone Number | 200x2(8''x2) | 250x1(10''x1) | 250x2(10''x2) | 250x3(10''x3) |
| Working Pressure | 0.25~0.45Mpa | |||
| Separation Point | 44~74μm | |||
| Bottom Shaker | Single deck screen sized about 1㎡ driven by 0.4kw motor. Or customized | |||
Desander Parameters
| Model | Hunter S120 | Hunter S240 | Hunter S360 | Hunter MS120 |
|---|---|---|---|---|
| Capacity | 120m³/h | 240m³/h | 360m³/h | 120m³/h |
| Power | 2x1.5kw | 2x1.5kw | 2x1.72kw | 2x0.75kw |
| Cones number | DN250X1 (10''X1) | DN250X2(10''X2) | DN250X3(10''X3) | DN250X1 (10''X1) |
| Screen Size | 1165x585x40 (120mesh)x3 |
1165x585x40 (120mesh)x3 |
1165x585x40 (120mesh)x4 |
750x900x27 (100mesh)x2 |
| Screen Area | 2㎡ | 2㎡ | 2.7㎡ | 1.35㎡ |
More Options
Facing the international market, based on the actual needs of users, AIPU provides flexible configuration for customers. The following are the main optional parameters:
- Electrical system - Customized
- Bottom shaker - Available
- ATEX, IEC, DGMS, UL, etc. certificates - Are available
- Surface coating colors
