Jet Mud Mixer Gallery
Browse our complete collection of Jet Mud Mixer equipment images. Find detailed product photos, specifications, and technical information for all our Jet Mud Mixer models.
Premium Jet Mud Mixer Series
The AIPU APSLH Jet Mud Mixer employs advanced Venturi-effect technology to achieve rapid and homogeneous mixing of drilling fluids and additives. Designed for efficient mud weighting and chemical preparation, its specialized hopper prevents slurry backflow while ensuring maximum dissolution rates. Compatible with AIPU's APSB centrifugal pump series, this robust system offers configurations from 11kW to 75kW, handling flow rates up to 255m³/h for drilling depths ranging from 1,500 to 7,000 meters. The wear-resistant nozzles (20-50mm) and mechanical seal design guarantee extended service life, significantly reducing manual mixing labor and enhancing operational safety in demanding drilling environments.
Jet Mud Mixer

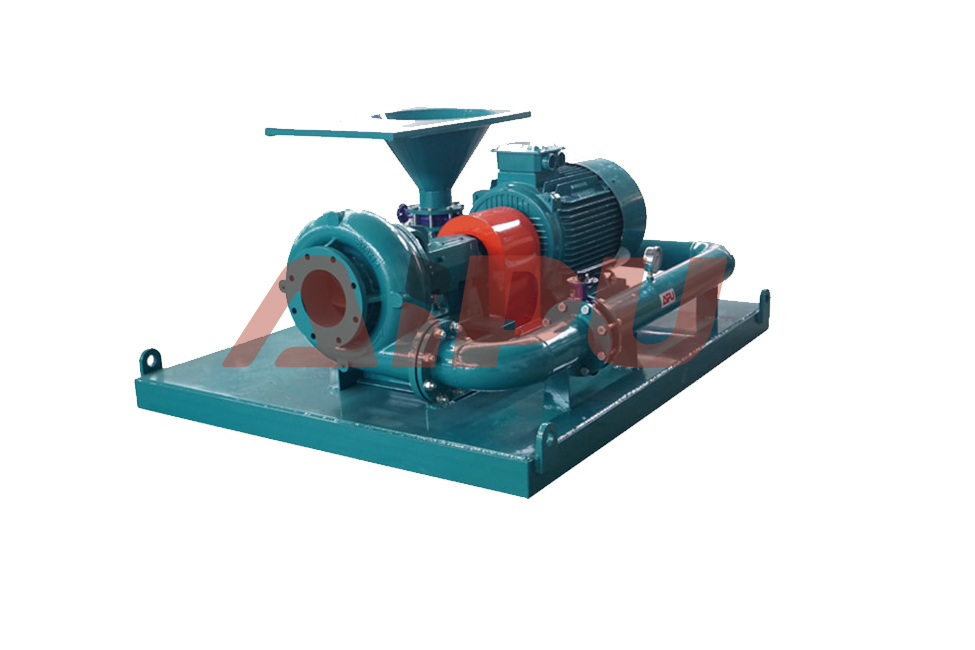

By eliminating manual mixing, the AIPU Jet Mud Mixer significantly improves safety while reducing labor costs and preparation time during drilling fluid weighting operations.
Jet Mud Mixer

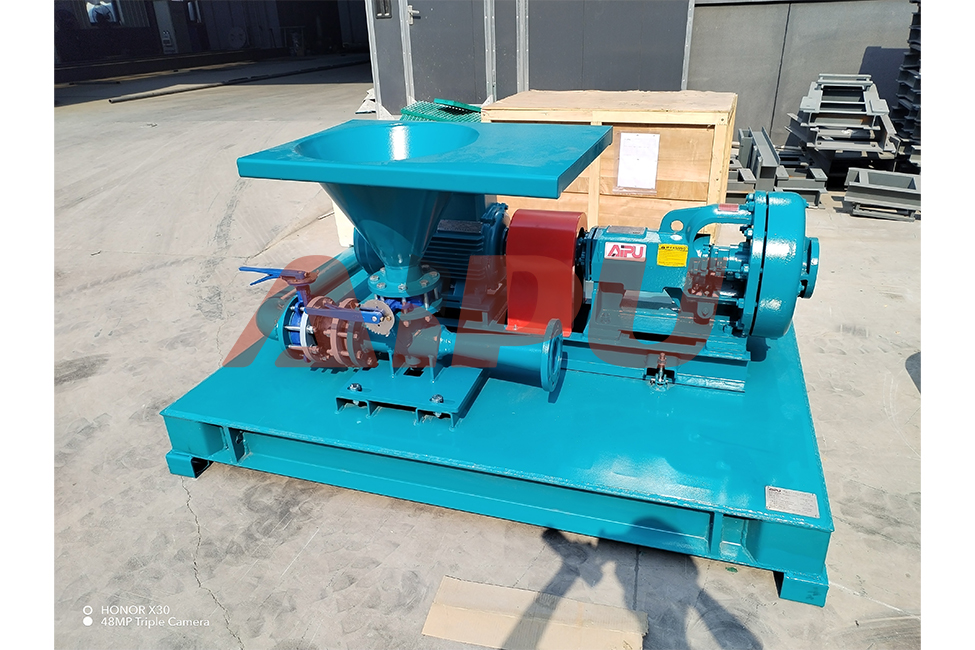

Customizable control systems and multiple power options (380V/460V) allow the APSLH mixer to adapt to international drilling site specifications.
Jet Mud Mixer

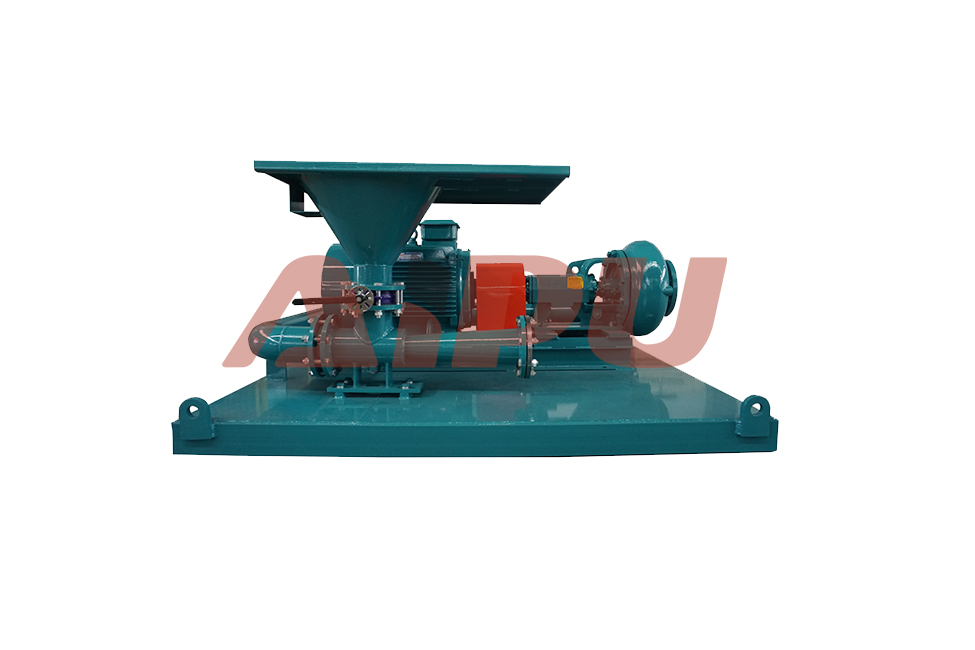

AIPU's compact jet mixing system enables quick installation on mud tanks and seamless integration with existing solids control equipment.
Jet Mud Mixer

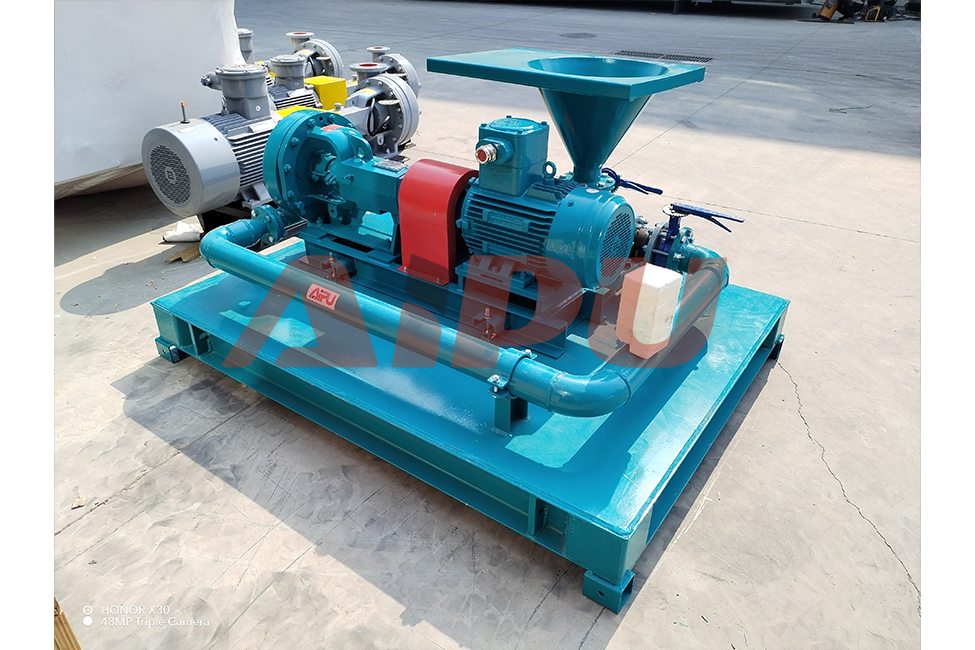

Designed for H2S-resistant environments, this mixer offers optional certified materials and explosion-proof configurations for hazardous zone operations.
Jet Mud Mixer

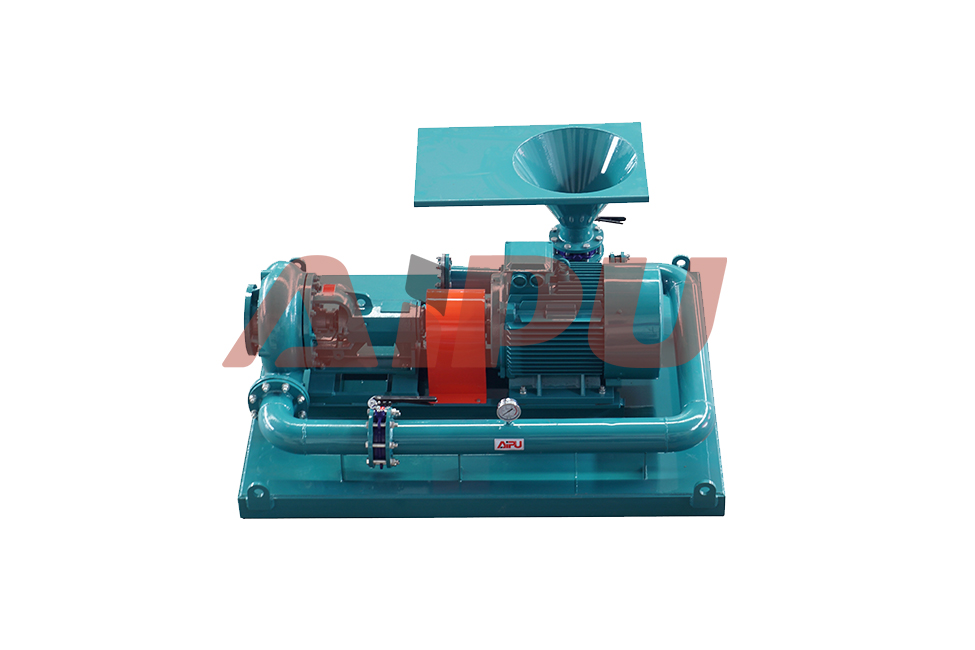

The APSLH Jet Mixer integrates AIPU's reliable centrifugal pumps and mechanical seals for extended service life in continuous mixing operations.
Jet Mud Mixer

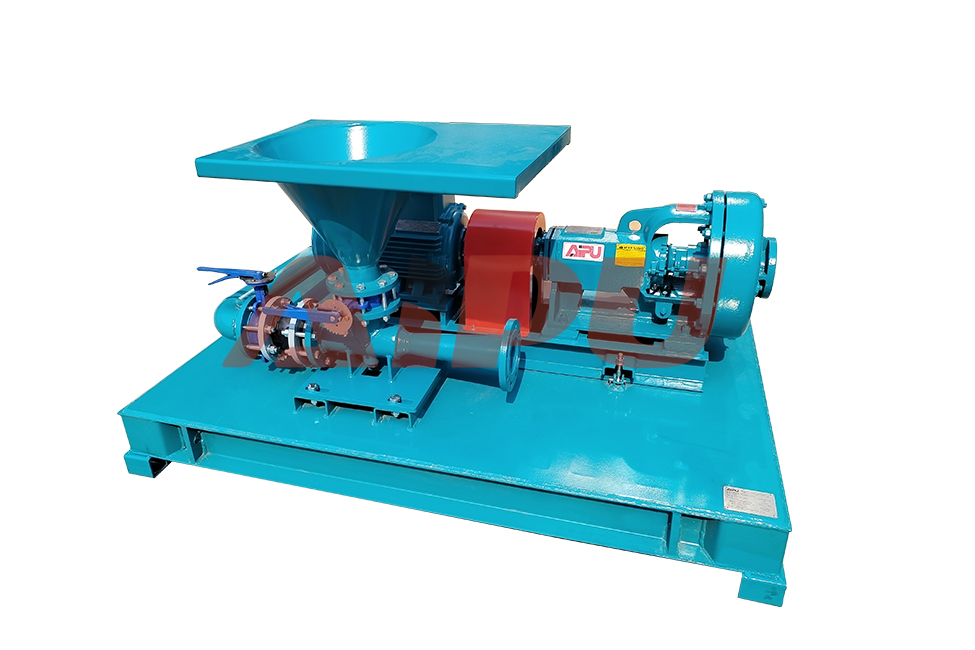

Featuring a wear-resistant Venturi hopper and precision nozzles (20-50mm), AIPU's mixer ensures efficient powder incorporation and reduced material waste.
Jet Mud Mixer

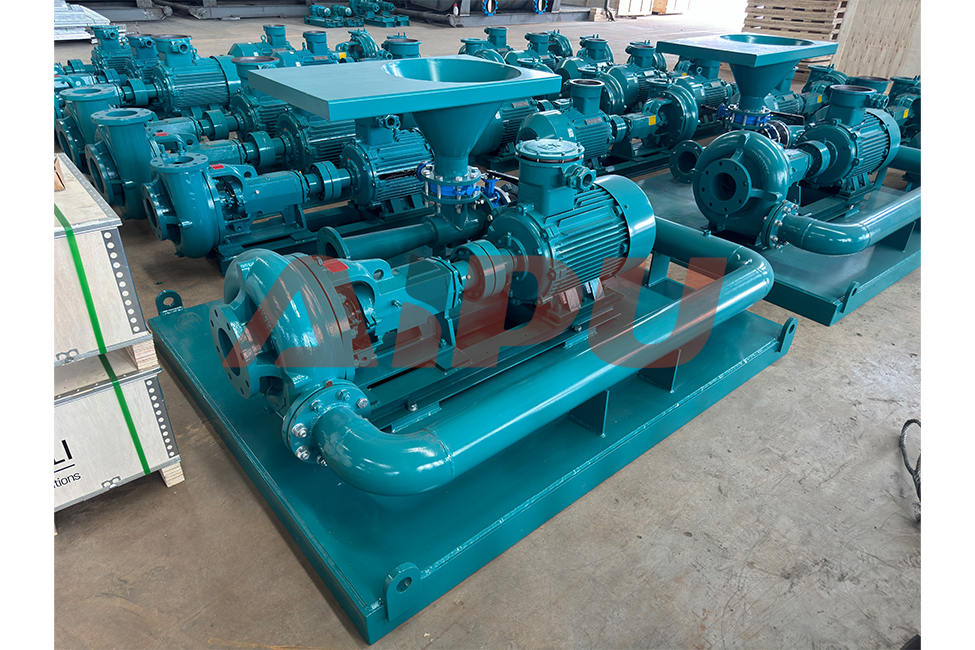

With models ranging from 11kW to 75kW, the APSLH series provides flexible mixing capacity from 50m³/h to 255m³/h to match various drilling depth requirements.
Jet Mud Mixer

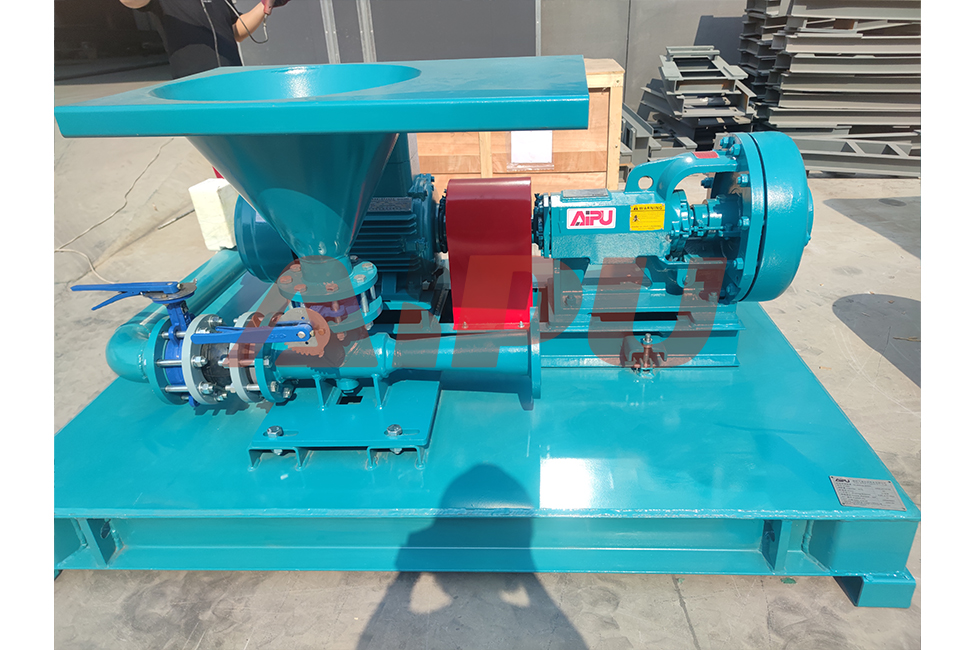

The AIPU APSLH Jet Mud Mixer utilizes Venturi-effect technology for rapid chemical dissolution and homogeneous slurry preparation without backflow.
Jet Mud Mixer Technical Specifications
| Model | Centrifugal Pump | Power | Flow Rate | Head | Nozzle Diameter |
|---|---|---|---|---|---|
| APSLH110-20 | APSB3x2 | 11kW | 50m³/h | 25m | 20mm |
| APSLH150-20 | APSB4x3 | 15kW | 80m³/h | 21m | 20mm |
| APSLH185-25 | APSB5x4 | 18.5kW | 100m³/h | 21m | 25mm |
| APSLH220-25 | APSB5x4 | 22kW | 105m³/h | 27m | 25mm |
| APSLH300-35 | APSB5x4 | 30kW | 110m³/h | 32m | 35mm |
| APSLH370-35 | APSB6x5 | 37kW | 190m³/h | 24m | 35mm |
| APSLH450-40 | APSB6x5 | 45kW | 220m³/h | 23m | 40mm |
| APSLH550-50 | APSB8x6 | 55kW | 250m³/h | 24m | 50mm |
| APSLH750-50 | APSB8x6 | 75kW | 255m³/h | 32m | 50mm |
