Slurry Pump Application

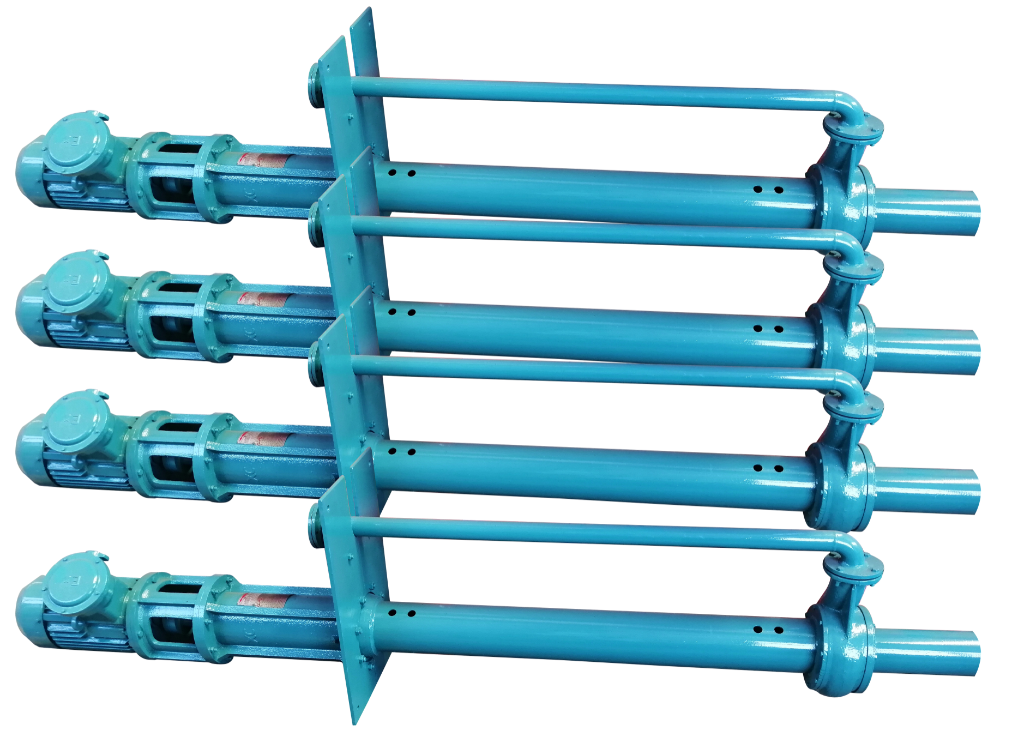

The vertical submersible slurry pump is for drilling mud transfer from mud pit to mud equipment or mud storage tank. Especially for HDD mud pit to shaker, or from mud tank to centrifuge in solids control system. Vertical design allows input and all bearings is above fluids to make pump free maintenance. A protection cover is also on mud suction point to stop solids or larger particles flow into pump during operation.

Slurry Pump Installation

If we installed such pump onto mud tank, there is a level plate on pump under motor, the plate is designed to bolted on tank top. The pump can be installed into mud pit as well with a builted simple platform to bolt pump level plate. The vertical design helps much on footprint decrease especially when set it on tank top.

For some HDD mud recycling system, we can install the pump over mud pit or mud case with supporting frame or beam. It’s easy to operate and maintain. Even we can connect the input port with a hose to the mud pit. Such pumps are very mature product.

Slurry Submersible Pumps Features

Self suction design increasing pump efficiency. The submersible pump is a high effective pump compares centrifugal pump, screw pump, diaphragm pump or multiple centrifugal pump. All bearings above fluids makes pump free maintenance nearly zero cost for spares. Depth from level plate to pump suction point is flexible from 1.0 to 1.8 meters, or even longer. Standard depth 1.3 meters without special request.

Please contact us freely for slurry pump or other pump inquiry.
