Shale Shaker On Tank for Trenchless

Shale shaker is one of the core solids separation equipment for drilling mud process. The shaker will sit on tank to allow tank fluids drop by gravity and tank for storage of treated mud. The shale shaker model section for trenchless should be: mud flow capacity, shaker screen specification, buffer box on shaker top and Non explosion proof electricals. Trenchless mud system requires good performance, limit foot print and cost effective. Any of the 3 points is very important to allow a trenchless user to select the right mud equipment.

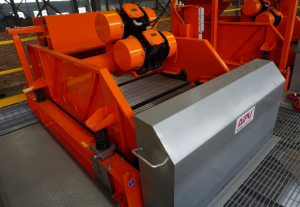

Shale shaker

Trenchless Shale Shaker Features

  1. Mud flow capacity has too meet mud pump flow capacity, the shaker flow capacity is flexible depending on shaker screen mesh and mud conditions. Screen mesh need to be considered while model selection.
  2. Shaker dimension should be considered to allow shaker installed on tank top without disassemble while inland transport. Buffer box fixed on tank top instead of back is necessary to reduce shaker length.
  3. Shaker is bolted onto tank top for flexible installation and disassemble while moving.
  4. Non-explosion proof electricals for trenchless project to reduce total cost.

There are several model options for shale shaker, AIPU is able to help for model selection depending on drilling mud condition. Please contact us freely for shaker

Screen for trenchless shaker

The screen for trenchless shaker can be normal one made from S.S wire cloth, also can be the polyurethane panel. The polyurethane screen panels can provide better water or fluids separation effect. Polyurethane screens last longer than the stainless steel screen panel, too

AIPU Hunter-D3 shaker
AIPU Hunter-D3 shaker

Screen opening size or the aperture is flexible to select. Ranged from 1mm to o.053mm. Furthermore, the screens can be fit by pins or the hook on shaker.

More difference between trenchless mud shaker and oilfield shaker

Besides above information, there is still other difference. Such as shaker deck angle adjustment range. We know the shaker for trenchless is more compact, the whole design is small foot print. It’s very portable. Easy to operate and maintain.

Also, the feeder box will be different with oilfield shaker, too. Because, the shaker may be fed by separated slurry pump. So the height or the feeder box height will be limited

You have more question? You need the detail on trenchless shale shaker? Please feel free to contact us.
