Shale Shaker for HDD Drill Rig

AIPU supply HDD shale shaker to match HDD drill rig and mud pump for drilling cuttings separation. HDD shale shaker is slightly different design with oilfield shaker because of mud conditions and transport difference. HDD shaker use 3 decks shaker mostly for 500GPM or higher mud flow capacity because of shorter deck will allow shaker stay on shaker tank while inland transport without disassemble. But oilfield shaker normally use 3 decks or 4 decks shaker with buffer box back design to allow mud over flow to reduce mud speed but longer shaker decks which will be disassemble while inland transport.

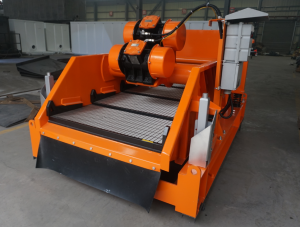

shale shaker

HDD Shale Shaker Features

  1. Non-explosion proof vibrator motors and electrical control panel for cost effective, oilfield shaker is explosion proof vibrator motors and electrical control panel.
  2. Buffer box install on top of shaker deck and shaker skid but oilfield shaker buffer box installs on back of shaker deck for mud overflow.
  3. 2 decks or 3 decks shaker is well used for HDD drill rig to suit mud flow capacity 100GPM to 1000GPM mud flow by 1 or 2 sets shale shaker.
  4. Shale shaker, cyclones, centrifugal pump, mixers installs on one tank to make a system but oilfield tank system normally 2 – 7 tanks system with larger mud storage capacity.

Other than shale shaker, AIPU build complete line HDD mud recycling system with standard model options 200GPM, 300GPM, 500GPM and 1000GPM mud flow capacity. Please contact us freely for HDD mud recycling system inquiry.
