AIPU Solids Control System Works on Drilling Site

AIPU Solids Control delivery 3 sets solids control system to drilling site and we just finished the last set system drilling site commissioning end of last month. The whole system was tested on drill site one by one with water filled in tank. It is 3 tanks lay in a line and another 3 tanks lay beside #3 mud tank to make L type layout. There are shale shaker, vacuum degasser, decanter centrifuge, centrifugal pump and mud agitator installed on mud tank for mud recycling, mud storage and mud mixing applications.

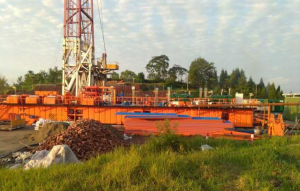

solids control systsem

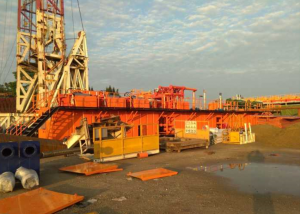

solids control system

Solids Control System Configuration and Application

1.       The whole system is working for oil drilling to match with China brand drill rig maximum drilling depth 7000 meters.

2.       3 sets mud pump lay beside suction mud tank with mud suction line arranged in all clean mud tank.

3.       3 sets linear motion shale shaker lay on shaker tank for mud treating capacity 1500GPM at 40 mesh screen. Mud cleaner with desander and desilter cyclone sit after shale shaker for second phase and third phase cleaning. The centrifuge sit after mud cleaner for forth phase cleaning for fine solids separation by centrifugal force.

4.       Mixing pump and mixing hopper sit on mixing tank with all mud mixing suction line and discharge line to make mud mixing application.

5.       All equipment and mud tanks make whole system a circulation system, drill hole – mud tank – drill hole circulation.

solids conrol system
solids control system

All 3 sets solids control system were tested and certified with clients standard. The shakers and mud cleaner were tested by water and confirms it’s correct vibrating motion. Centrifuge working by water 2 hours and confirms bearing box temperature increasing is in safety range. All solids control system is build by customized mud tank arrangement with standard equipment. Please contact AIPU freely for technical support and spare parts support
